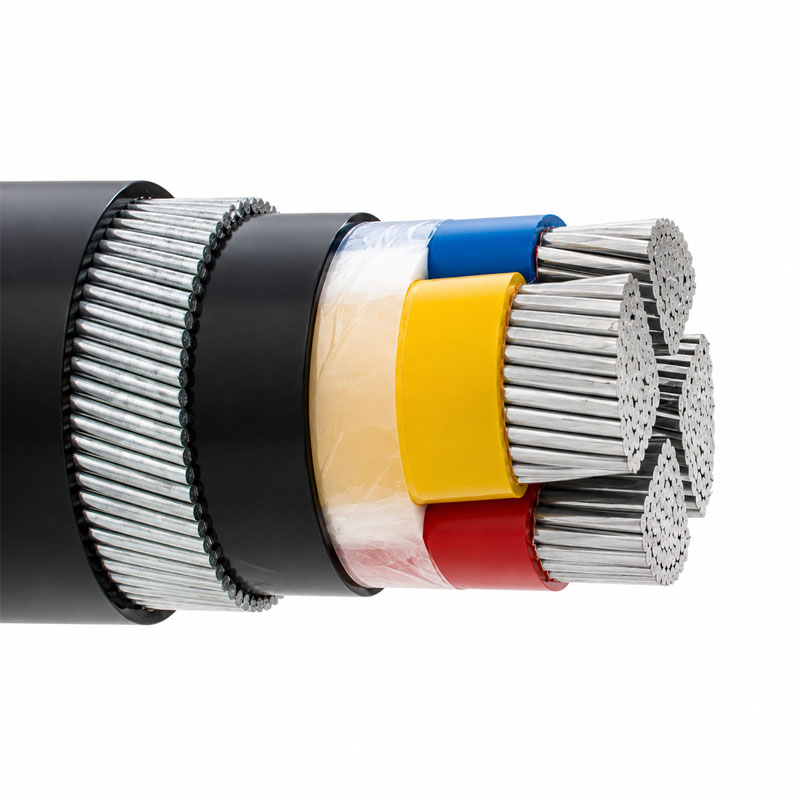

ARMOURED

Cables

APPLICATIONS

Power cables for medium voltage (upto 3.3kv) are used in – outdoor cable ducts, cable trays, conduits or underground locations under mechanical stresses in power and switching stations, local distribution systems and industrial plants.

TECHNICAL DATA

• Test Voltage: 3300 V
• Conductor: Aluminium Stranded compacted circular conductor conform to
  IS 8130 : 2013, Class 1 or Class 2.
• Insulation: Cross linked polythylene to (XLPE)
• Core Colour: Single core - natural Multi core - Numbered or colour polyster tapes applied over copper tapes
• Bedding: Extruded PVC
• Armour: Single core - Non-magnetic ( Aluminum ) wire / Flat wire
  Multi core - Galvanished steel wire / flat wire / Tape
• Outer Sheath: Extruded PVC / Special PVC compound such as Flame Retardant (FR), Flame Retardant Low Smoke(FRLS), Low Smoke Zero Halogen(LSOH) can be used for outer sheath to suit a variety of environment and fire risk conditions. Flamability test conforms to IEC 60332-1-2 : 2015 . For installation where fire and associated problems such as emission of smoke and toxic fumes offer a serious potential threat, special LSF (Low, smoke & fumes) compound can be provided. LSF compound is Halogen free (Fluorine, Chlorine, Bromine) when tested. The acid gas evolved during combustion is less than 0.5% by weight of material.
• Minimum Bending radius: Fixed installation | 12 x Overall diameter
