APPLICATIONS

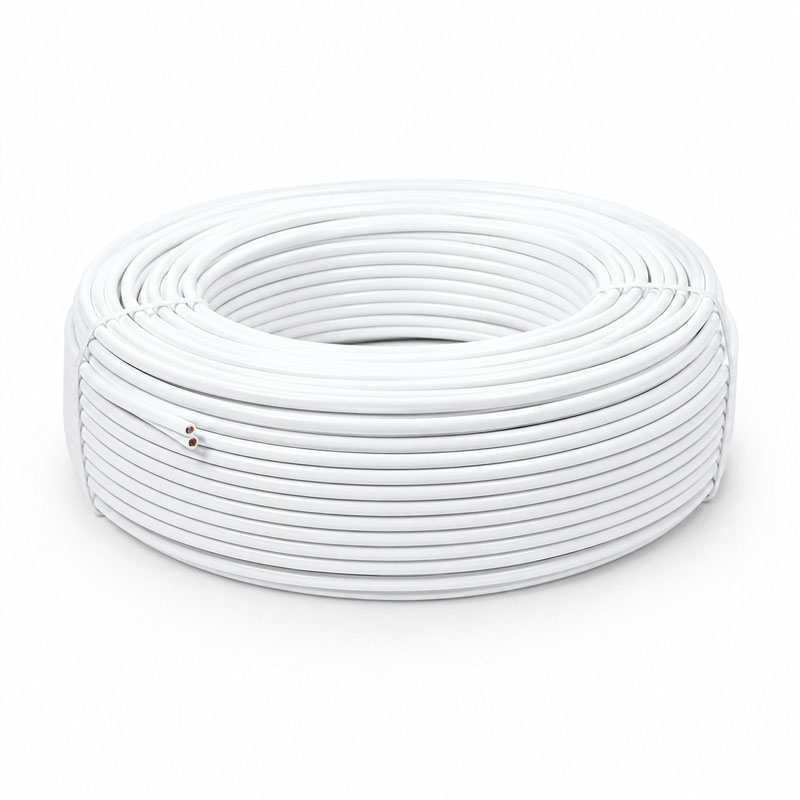

These cables are specifically designed to transmit complete video frequency with minimum distortion or attenuation for security and surveillance. This Cable is offered in two variants that is 4+1 and 3+1 CCTV Camera cable.

PROPERTIES

CCTV cables are designed to optimize the quality of video signals. The dense tin-coated copper screen ensures complete elimination of EMI/RFI from video signals and also provides reduced DC resistance ground path. The multi-stranded construction offers better flexibility and reduced bending radius.

Download Our catalogue

Download Now!

TECHNICAL DATA

• Conductor: The central conductor is made of fine wires tin-coated electrolytic grade copper.
• Insulation: The insulation provided over the conductor is of HDPE with high dielectric strength and low capacitance.
• Screen: Annealed tin-coated copper 85% coverage approx.
• Sheath: Black-colored PVC.

POWER CORES

• Conductor: The central conductor is made of fine wires tin-coated electrolytic grade copper.
• Insulation: The insulation provided over the conductor is of PVC with high dielectric strength.
• Separator: PETP tape.
• Sheath: PVC
• Cable Color: White, Black with UV resistance to ASTM G 154
